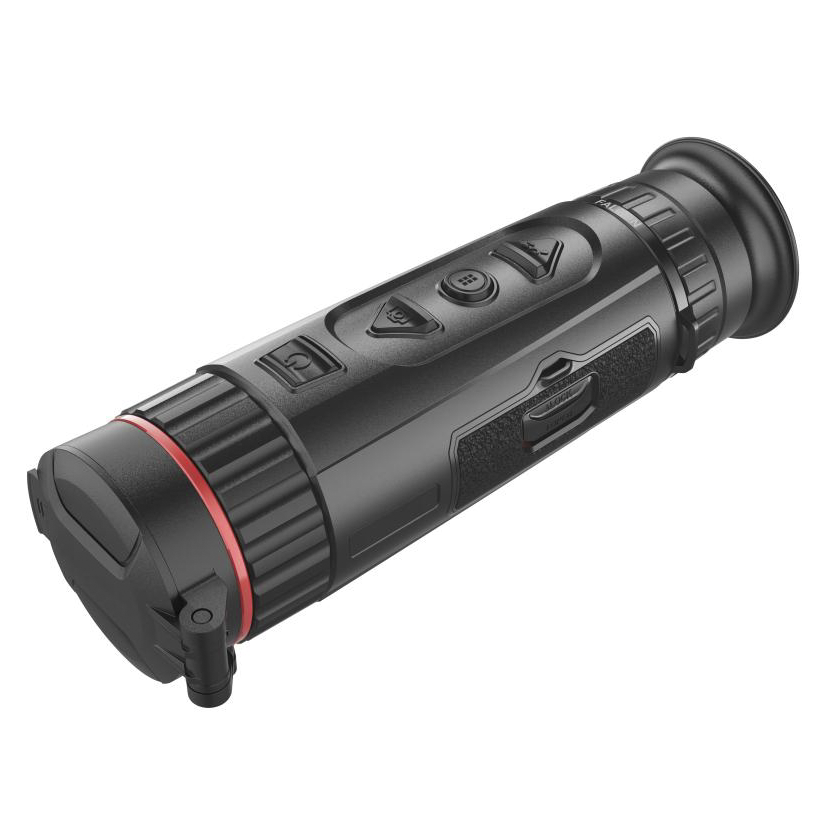

HIKMICRO Monokkel LYNX Pro LE10

729.00

HIKMICRO LYNX S LE10S termomonokkel on varustatud 256 × 192 infrapunadetektori ja 800 × 600 OLED ekraaniga. See toetab vaatlust, kauguse mõõtmist, kuumkoha tuvastamist ja muid funktsioone. Kõrge tundlikkusega sisseehitatud termodetektor tagab selge vaate isegi täielikus pimeduses. Monoklit kasutatakse peamiselt jahil, matkamisel, otsimis- ja päästeoperatsioonidel jne.

Peamised omadused:

  • 256 × 192 resolutsioon, 12 μm, kõrge tundlikkusega detektor
  • NETD vähem kui 35 mK (@25°C, F# = 1.0)
  • Adaptivne AGC, DDE, 3D DNR
  • 800 × 600 resolutsiooniga 0,32-tolline OLED ekraan
  • Sisseehitatud laetav liitiumaku
  • Kuni 8 tundi pidevat töötamist
  • Toetab kuumkoha tuvastamist

Laost otsas

Kirjeldus

Specification

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C, F# = 1.0)
Lens (Focal Length) 9.7 mm, F1.0
Focus Mode Focus Free
Detection Range 500 m
Min. Focusing Distance 4 m
Magnification 1.5× to 12.0× (8×)
Field of View(H × V),

Degrees / m @100 m

18.0° × 13.6° / 31.7 m × 23.8 m
Image Display
Display 800 × 600, 0.32-inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 20 mm
Eye Relief 6 mm
Diopter (Range) -5D to +4D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Power Supply
Battery Type Rechargeable Lithium Battery
Battery Operating Time 8 hours continuous running with hotspot function off (@25°C)
6 hours continuous running with hotspot function on (@25°C)
Type-C Power Supply DC 5 V/2 A
Supports External Power Supply
General
Protection Level IP67
Dimension 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”)
Working Temperature – 20°C to 55°C (-4°F to 131°F)
Weight 260 g (0.57 lbs)



Brand

Hikmicro
