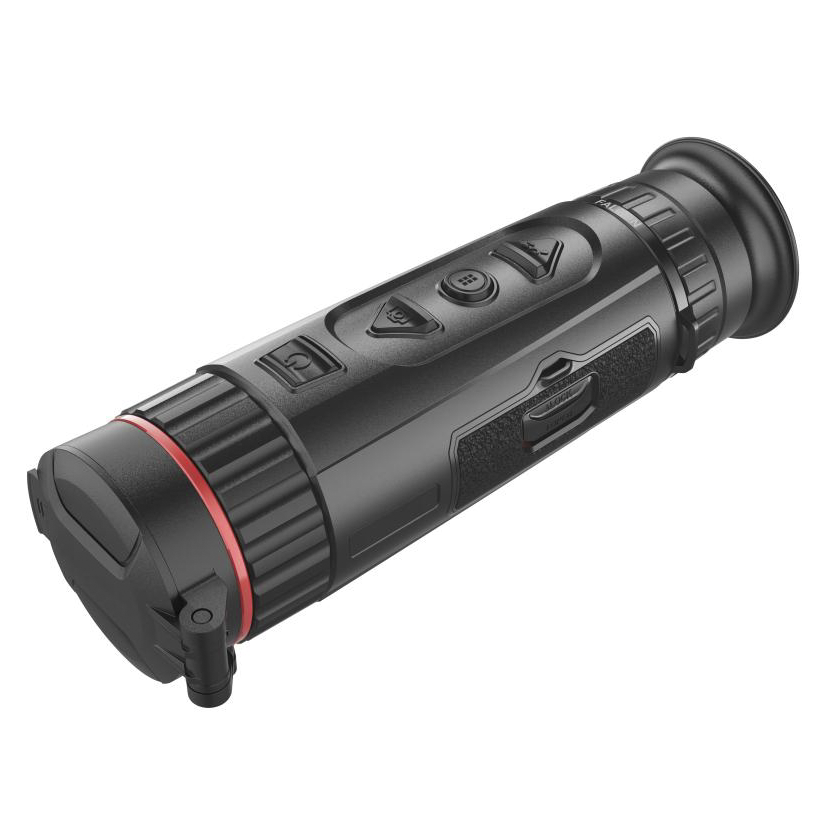

HIKMICRO Monokkel LYNX Pro LE10
€729.00
HIKMICRO LYNX S LE10S termomonokkel on varustatud 256 × 192 infrapunadetektori ja 800 × 600 OLED ekraaniga. See toetab vaatlust, kauguse mõõtmist, kuumkoha tuvastamist ja muid funktsioone. Kõrge tundlikkusega sisseehitatud termodetektor tagab selge vaate isegi täielikus pimeduses. Monoklit kasutatakse peamiselt jahil, matkamisel, otsimis- ja päästeoperatsioonidel jne.
Peamised omadused:
- 256 × 192 resolutsioon, 12 μm, kõrge tundlikkusega detektor
- NETD vähem kui 35 mK (@25°C, F# = 1.0)
- Adaptivne AGC, DDE, 3D DNR
- 800 × 600 resolutsiooniga 0,32-tolline OLED ekraan
- Sisseehitatud laetav liitiumaku
- Kuni 8 tundi pidevat töötamist
- Toetab kuumkoha tuvastamist
Laos
Kirjeldus
Specification
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 256 × 192 |
Frame Rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 35 mK (@25°C, F# = 1.0) |
Lens (Focal Length) | 9.7 mm, F1.0 |
Focus Mode | Focus Free |
Detection Range | 500 m |
Min. Focusing Distance | 4 m |
Magnification | 1.5× to 12.0× (8×) |
Field of View(H × V),
Degrees / m @100 m |
18.0° × 13.6° / 31.7 m × 23.8 m |
Image Display | |
Display | 800 × 600, 0.32-inch, OLED |
Palettes | Black Hot, White Hot, Red Hot, Fusion |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 20 mm |
Eye Relief | 6 mm |
Diopter (Range) | -5D to +4D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, Warm |
Contrast Adjustment | Yes |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Audio Recording | Yes |
Standby Mode | Yes |
Storage | Built-in memory module (8 GB) |
PIP | Yes |
Hotspot | Yes |
Hot Track | Yes |
Distance Measurement | Yes |
Power Supply | |
Battery Type | Rechargeable Lithium Battery |
Battery Operating Time | 8 hours continuous running with hotspot function off (@25°C) 6 hours continuous running with hotspot function on (@25°C) |
Type-C Power Supply | DC 5 V/2 A Supports External Power Supply |
General | |
Protection Level | IP67 |
Dimension | 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”) |
Working Temperature | – 20°C to 55°C (-4°F to 131°F) |
Weight | 260 g (0.57 lbs) |
